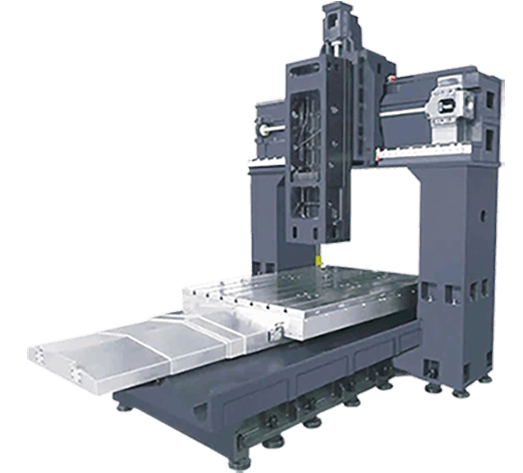

DOUBLE CONLUMN SERIES - DC SERIES
Model: 2050 | 2250 | 3250 | 3550 | 4250
CONTROL SYSTEM FEATURES
- Manual Data Input
- 2 Axis simultaneous
- Part Program Storage and Editing
- Constant Surface Speed Control
- Tool nose radius Compensation
- Feed rate override
- Circular Interpolation
- Threaded Cutting Cycle
- Direct drawing dimensions programming
- Absolute / Incremental programming
- RS-232 serial interface port
- Backlash compensation
- Graphic Simulation
- Electronic hand wheel
- Run hour display
- LCD display
- Self diagnostick
- USB Port
STANDRD FEATURES
- Hardened & Ground EN-9 Box Guideways
- AC Spindle Drive & Servo Drive
- Hydraulic Chuck with Actuating cylinder
- Hydraulic Unit, Foot Switch, Coolant System
- Centralized Lubrication System
- Electrical Quality Device
- Boring holder & Axial holder
OPTIONAL
- Chip Converyor
- Bar feeder
- Bar Puller
- Hydraulic Turret
- Stabilizer
- Auto Door
WARM UP OPERATION
- Warm up Operation in the Machine must be do when machine power on after a certain time.
- In Warm up Operation of Machine move the all Axis without job in a Progarm Cycle.
| SPECIFCATION | DC - 2050 | DC - 2250 | DC - 3250 | DC - 3550 | DC - 4250 | |
| TRAVELS | ||||||
| X - Axis | mm | 2000 | 2250 | 3250 | 3500 | 4250 |
| Y - Axis | mm | 1250 | 1500 | 1500 | 2800 | 2760 |
| Z - Axis | mm | 700 | 800 (1000) | 800 (1000) | 800 (1000) | 800 (1000) |
| Spindle Nose to Table | mm | 150 | 200 | 200 | 200 | 200 |
| Distance Between Two Columans | mm | 1200 | 1600 | 1600 | 2600 | 2600 |
| TABLE | ||||||
| Lenght | mm | 2000 | 2200 | 3000 | 3500 | 3500 |
| Width | mm | 900 | 1250 | 1250 | 2200 | 2200 |
| Max Width on Table | Kg. | 2500 | 6000 | 8000 | 10000 | 10000 |
| T-Slot Width | mm | 6 x 18 | 9 x 18 | 9 x 18 | 12 x 12 | 12 x 12 |
| T-Slot Center Distance | mm | 125 | 125 | 125 | 160 | 160 |
| SPINDLE | ||||||
| Spindle Nose | BT 40 | BT 50 | BT 50 | BT 50 | BT 50 | |
| Speed Range | RPM | 8000 | 6000 | 6000 | 6000 | 6000 |
| Drive System | Belt Drive | Belt Drive | Belt Drive | Belt Drive | Belt Drive | |
| Front Bearing ID | mm | 70 | 100 | 100 | 100 | 100 |
| Spindle Motor Max Power Fanuc | Kw | 11/15 | 22/18.5 | 22/18.5 | 22/18.5 | 22/18.5 |
| Spindle Motor Max Power Siemens | Kw | 12/15 | 32.3/21.5 | 32.3/21.5 | 32.3/21.5 | 32.3/21.5 |
| AXIS MOTORS | ||||||
| Rapid on Z Axis Box Giude | m/min. | 15 | 15 | 15 | 15 | 15 |
| Rapids on X & Y Axis | m/min. | 20 | 20 & 20 | 15 & 15 | 15 & 15 | 15 & 15 |
| Max Cuttig Feed | m/min. | 20 | 10 | 10 | 10 | 10 |
| AUTOMATIC TOOL CHANGER | ||||||
| Number of Tools | 24 | 24 | 24 | 24 | 24 | |
| Max. Tool Dia. Standard (Full/Adj.Empty) | mm | 89/125 | 125/250 | 125/250 | 125/250 | 125/250 |
| Max. Tool Weight | Kg. | 7 | 15 | 15 | 15 | 15 |
| Changer Type Standard | Arm Type | Arm Type | Arm Type | Arm Type | Arm Type | |
| ACCURACY | ||||||
| Positioning | mm/mtr | ±0.02 | ±0.02 | ±0.02 | ±0.02 | ±0.02 |
| Repeatability | mm | ±0.01 | ±0.012 | ±0.012 | ±0.012 | ±0.012 |
| Machine weight | Kg. | 14500 | 26400 | 38400 | 34600 | 37000 |
