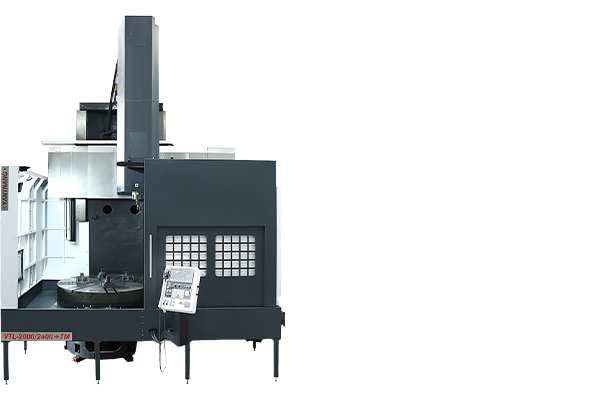

VTL QUILL SERIES
Model: 800-600 | 800-800 | 1000 | 1250 | 1500 | 1850
CONTROL SYSTEM FEATURES
- Manual Data Input
- 2 Axis simultaneous
- Part Program Storage and Editing
- Constant Surface Speed Control
- Tool nose radius Compensation
- Feed rate override
- Circular Interpolation
- Threaded Cutting Cycle
- Direct drawing dimensions programming
- Absolute / Incremental programming
- RS-232 serial interface port
- Backlash compensation
- Graphic Simulation
- Electronic hand wheel
- Run hour display
- LCD display
- Self diagnostick
- USB Port
OPTIONAL
- Automatica Tool Changer - ATC
- 4 Jaw / 6 Jaw Power Chuck
- Automatic Pallet Changer
- Auto loading / Unloading System
- Tools Setting Probe
- Spinadla Gear Box
- Manual Chuck
| CAPACITY | UNIT | 800/600 | 800/800 | 1000 | 1250 | 1500 | 1850 |
| MAX. SWING DIA. | MM | 1050 | 1050 | 1250 | 1500 | 2000 | 2500 |
| MAXIMUM BORING LENGTH | MM | 600 | 800 | 925 | 925 | 1200 | 1200 |
| MAXIMUM CUTTING HEIGHT (Optional) | MM | 600 | 800 | 925 | 925 | 1200(1600) | 1200(1600) |
| DAYLIGHT (Optional) | MM | 650 | 850 | 1000 | 1000 | 1280(1600) | 1280(1600) |
| STANDARD TURNING DIA. | MM | 600 | 600 | 800 | 1250 | 1500 | 2000 |
| CHUCK SIZE / FACEPLATE | MM | 530/800 | 530/800 | 600/1000 | 800/1254 | NA/1500 | NA/2000 |
| MAX. TURNING DIA. | MM | 800 | 800 | 1000 | 1250 | 1800 | 2000 |
| X-AXIS TRAVEL | MM | 450 | 450 | 600 | 700 | 850 | 1350 |
| Z-AXIS TRAVEL | MM | 600 | 800 | 925 | 925 | 1200 | 1200 |
| CROSS SLIDE TRAVEL (Optional) | MM | - | - | - | - | (700) | (700) |
| RAPID TRANSVERRSE X-AXIS | M/Min. | 10 | 10 | 7 | 7 | 5 | 5 |
| RAPID TRANSVERRSE Z-AXIS | M/Min. | 10 | 10 | 7 | 7 | 5 | 5 |
| SLIDE | |||||||
| X AXIS GUIDEWAY | BOX | BOX | BOX | BOX | BOX | BOX | |
| Z AXIS GUIDEWAY | OCTA SHAPE | OCTA SHAPE | OCTA SHAPE | OCTA SHAPE | OCTA SHAPE | OCTA SHAPE | |
| MAIN SPINDLE | |||||||
| SPINDLE MOTOR (Optional) | KW | 22/26 | 22/26 | 22/26 | 30 | 30 | 55 (100) |
| SPINDLE BROE | 100 | 100 | 110 | 110 | 110 | 110 | |
| SPINDLE NOSE | A2-11 | A2-11 | A2-15 | A2-15 | A2-15 | FLAT | |
| SPINDLE SPEED RANGE | RPM | 50-550 | 50-550 | 50-400 | 50-350 | 25-200 | 5-100 |
| FUL POWER SPEED RANGE | RPM | 200-500 | 200-500 | 100-400 | 75-350 | 25-200 | 5-100 |
| ATC BT-50 | |||||||
| NUMBER OF STATION | 8 | 8 | 8 | 8 | 8 | 8 | |
| MAX. BORING BAR DIA. | 40 | 50 | 50 | 50 | 50 | 50 | |
| TOOL SIZE (CROSS SECTION) | 25 x 25 | 25 x 25 | 32 x 32 | 32 x 32 | 32 x 32 | 32 x 32 | |
| OTHERS | |||||||
| WEIGHT | KG. | 6800 | 8000 | 11000 | 12500 | 15000 | 20000 |
| POSITIONING ACCURACY | MM | ±0.01 | ±0.01 | ±0.01 | ±0.015 | ±0.015 | ±0.015 |
| REPEATABILITY | MM | ±0.01 | ±0.01 | ±0.01 | ±0.015 | ±0.012 | ±0.015 |
