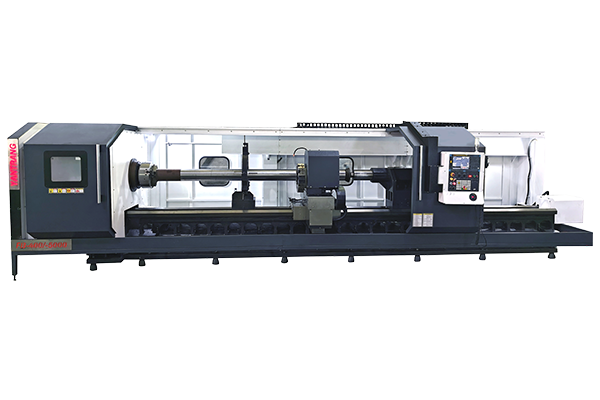

FLAT-BED SERIES

Model: 250-600 to 800-6000

 Download Brochure

CONTROL SYSTEM FEATURES

  • Manual Data Input
  • 2 Axis simultaneous
  • Part Program Storage and Editing
  • Constant Surface Speed Control
  • Tool nose radius Compensation
  • Feed rate override
  • Circular Interpolation
  • Threaded Cutting Cycle
  • Direct drawing dimensions programming
  • Absolute / Incremental programming
  • RS-232 serial interface port
  • Backlash compensation
  • Graphic Simulation
  • Electronic hand wheel
  • Run hour display
  • LCD display
  • Self diagnostick
  • USB Port

STANDRD FEATURES

  • Hardened & Ground EN-9 Box Guideways
  • AC Spindle Drive & Servo Drive
  • Hydraulic Chuck with Actuating cylinder
  • Hydraulic Unit, Foot Switch, Coolant System
  • Centralized Lubrication System
  • Electrical Quality Device
  • Boring holder & Axial holder

OPTIONAL

  • Chip Converyor
  • Bar feeder
  • Bar Puller
  • Hydraulic Turret
  • Stabilizer
  • Auto Door

WARM UP OPERATION

  • Warm up Operation in the Machine must be do when machine power on after a certain time.
  • In Warm up Operation of Machine move the all Axis without job in a Progarm Cycle.
CAPACITY UNIT 250/600 250/1000 300/1000 300/1500
SWING OVER BED MM 500 500 550 550
MAXIMUM TURNING LENGTH MM 600 1000 1000 1500
MAXI. DIA. BETWEEN CENTER MM 250 250 300 300
DISTANCE BETWEEN CENTER MM 600 1100 1100 1550
STANDARD TURNING DIA. MM 250 250 300 300
CHUCK SIZE MM 250 250 300 300
MAX. TURNING DIA. MM 400 400 400 400
X-AXIS TRAVEL MM 225 225 250 250
Z-AXIS TRAVEL MM 700 1100 1100 1550
RAPID TRANSVERSE (X-AXIS) M/Min. 15 15 15 15
RAPID TRANSVERSE (Z-AXIS) M/Min. 15 15 15 12
SLIDE
X AXIS BALL SCREW (P x D)   32 X 10 32 X 10 40 X 10 40 X 10
Z AXIS BALL SCREW (P x D)   32 X 10 40 X 10 40 X 10 40 X 10
MOTOR TORQUE (Z axis) NM 6 6 8 8
MOTOR TORQUE (X axis) NM 6 6 8 8
MAIN SPINDLE
INDUCTION SPINDLE MOTOR KW 7.5 7.5 11 11
SPINDLE BORE   56 56 75 75
SPINDLE NOSE   A2-6 A2-6 A2-8 A2-8
MAXIMUM BAR CAPACITY   46 46 60 60
SPINDLE SPEED RANGE RPM 200-1500 200-1500 200-800 200-800
TURRET   SQTP-190 SQTP-190 SQTP-190 SQTP-190
NUMBER OF STATION   4 4 4 4
TOOL SIZE (CROSS SECTION)   25 X 25 25 X 25 25 X 25 25 X 25
TAIL STROKE
QUILL DIA.   85 85 100 100
QUILL STROKE   250 250 250 250
THRUST (ADJUSTABLE) KGF 700 700 700 700
OTHERS
POSITIONING ACCURACY MM 0.025 0.025 0.025 0.025
REPEATABILITY MM 0.015 0.015 0.015 0.015

NOTE

Specification Subject to Change without Prior Notice.

CAPACITY UNIT 400/2000 400/3000 400/4000 500/3000
SWING OVER BED MM 700 700 700 700
MAXIMUM TURNING LENGTH MM 2000 3000 4000 3000
MAXI. DIA. BETWEEN CENTER MM 400 400 400 500
DISTANCE BETWEEN CENTER MM 2150 3150 4150 3150
STANDARD TURNING DIA. MM 400 400 400 500
CHUCK SIZE MM 400 400 400 530
MAX. TURNING DIA. MM 500 500 500 600
X-AXIS TRAVEL MM 275 275 275 325
Z-AXIS TRAVEL MM 2150 3150 4150 3150
RAPID TRANSVERSE (X-AXIS) M/Min. 15 15 15 15
RAPID TRANSVERSE (Z-AXIS) M/Min. 10 10 10 5
SLIDE
X AXIS BALL SCREW (P x D)   40 X 10 40 X 10 40 X 10 40 X 10
Z AXIS BALL SCREW (P x D)   40 X 10 50 X 10 50 X 10 50 X 10
MOTOR TORQUE (Z axis) NM 11 16 16 16
MOTOR TORQUE (X axis) NM 11 16 16 16
MAIN SPINDLE
INDUCTION SPINDLE MOTOR KW 15 22 22 22
SPINDLE BORE   75 75 75 110
SPINDLE NOSE   A2-8 A2-11 A2-11 A2-11
MAXIMUM BAR CAPACITY   60 60 60 90
SPINDLE SPEED RANGE RPM 200-800 200-800 200-800 200-800
TURRET   SQTP-190 SQTP-190 SQTP-190 SQTP-190
NUMBER OF STATION   4 4 4 4
TOOL SIZE (CROSS SECTION)   25 X 25 25 X 25 25 X 25 25 X 25
TAIL STROKE
QUILL DIA.   100 130 130 130
QUILL STROKE   250 250 250 250
THRUST (ADJUSTABLE) KGF 700 700 700 700
OTHERS
POSITIONING ACCURACY MM 0.025 0.025 0.025 0.025
REPEATABILITY MM 0.015 0.015 0.015 0.015

NOTE

Specification Subject to Change without Prior Notice.

CAPACITY UNIT 600/1000 600/2000 600/3000 600/4000
SWING OVER BED MM 850 850 850 850
MAXIMUM TURNING LENGTH MM 1000 2000 3000 4000
MAXI. DIA. BETWEEN CENTER MM 600 600 600 600
DISTANCE BETWEEN CENTER MM 1100 2150 3150 4150
STANDARD TURNING DIA. MM 600 600 600 600
CHUCK SIZE MM 600 600 600 600
MAX. TURNING DIA. MM 750 750 750 750
X-AXIS TRAVEL MM 400 400 400 400
Z-AXIS TRAVEL MM 1100 2150 3150 4150
RAPID TRANSVERSE (X-AXIS) M/Min. 15 15 15 15
RAPID TRANSVERSE (Z-AXIS) M/Min. 10 10 10 5
SLIDE
X AXIS BALL SCREW (P x D)   40 X 10 40 X 10 40 X 10 50 X 10
Z AXIS BALL SCREW (P x D)   50 X 10 50 X 10 50 X 10 Rack & Pinion
MOTOR TORQUE (Z axis) NM 16 20 20 20
MOTOR TORQUE (X axis) NM 16 16 16 16
MAIN SPINDLE
INDUCTION SPINDLE MOTOR KW 22 22 22 22
SPINDLE BORE   110 110 110 110
SPINDLE NOSE   A2-11 A2-11 A2-11 A2-11
MAXIMUM BAR CAPACITY   90 90 90 90
SPINDLE SPEED RANGE RPM 200-800 100-500 100-500 100-500
TURRET   SQTP-200 SQTP-200 SQTP-200 SQTP-200
NUMBER OF STATION   4 4 4 4
TOOL SIZE (CROSS SECTION)   32 X 32 32 X 32 32 X 32 32 X 32
TAIL STROKE
QUILL DIA.   130 130 130 130
QUILL STROKE   250 250 250 250
THRUST (ADJUSTABLE) KGF 700 700 700 700
OTHERS
POSITIONING ACCURACY MM 0.025 0.025 0.025 0.025
REPEATABILITY MM 0.015 0.015 0.015 0.015

NOTE

Specification Subject to Change without Prior Notice.

CAPACITY UNIT 800/1000 800/2000 800/3000 800/5000 800/6000
SWING OVER BED MM 1000 1000 1000 1000 1000
MAXIMUM TURNING LENGTH MM 1000 2000 3000 5000 6000
MAXI. DIA. BETWEEN CENTER MM 800 800 800 800 800
DISTANCE BETWEEN CENTER MM 1150 2150 3150 5150 6150
STANDARD TURNING DIA. MM 800 800 800 800 800
CHUCK SIZE MM 600/800 600/800 600/800 600/800 600/800
MAX. TURNING DIA. MM 1000 1000 1000 1000 1000
X-AXIS TRAVEL MM 525 525 525 525 525
Z-AXIS TRAVEL MM 1150 2150 3150 5150 6150
RAPID TRANSVERSE (X-AXIS) M/Min. 15 15 15 15 15
RAPID TRANSVERSE (Z-AXIS) M/Min. 10 10 5 5 5
SLIDE
X AXIS BALL SCREW (P x D)   50 X 10 50 X 10 50 X 10 63 X 10 63 X 10
Z AXIS BALL SCREW (P x D)   50 X 10 Rack & Pinion Rack & Pinion Rack & Pinion Rack & Pinion
MOTOR TORQUEV (Z axis) NM 20 20 20 20 20
MOTOR TORQUE (X axis) NM 16 16 16 16 16
MAIN SPINDLE
INDUCTION SPINDLE MOTOR KW 30 30 30 30 30
SPINDLE BORE   110 110 150 150 150
SPINDLE NOSE   A2-11 A2-11 A2-15 A2-15 A2-15
MAXIMUM BAR CAPACITY   90 90 120 120 120
SPINDLE SPEED RANGE RPM 100-500 100-500 50-500 50-500 50-500
TURRET   SQTP-200 SQTP-200 SQTP-200 SQTP-200 SQTP-200
NUMBER OF STATION   4 4 4 4 4
TOOL SIZE (CROSS SECTION)   32 X 32 32 X 32 32 X 32 32 X 32 32 X 32
TAIL STROKE
QUILL DIA.   130 130 130 130 130
QUILL STROKE   250 250 250 250 250
THRUST (ADJUSTABLE) KGF 700 700 700 700 700
OTHERS
POSITIONING ACCURACY MM 0.025 0.025 0.025 0.025 0.025
REPEATABILITY MM 0.015 0.015 0.015 0.015 0.015

NOTE

Specification Subject to Change without Prior Notice.
