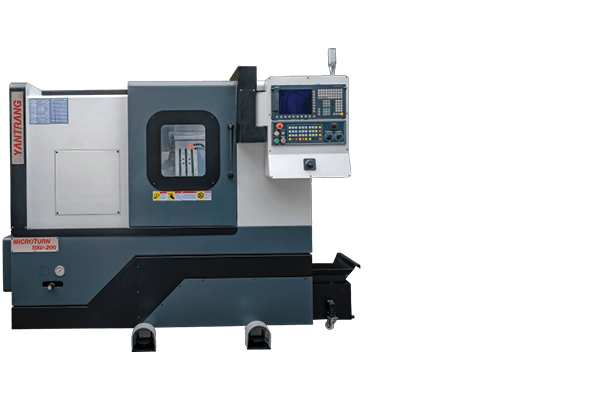

MICRO TURN TURNMILL
Model: LINEAR 100-200 | Model: TURRET 200-300
CONTROL SYSTEM FEATURES
- Manual Data Input
- 2 Axis simultaneous
- Part Program Storage and Editing
- Constant Surface Speed Control
- Tool nose radius Compensation
- Feed rate override
- Circular Interpolation
- Threaded Cutting Cycle
- Direct drawing dimensions programming
- Absolute / Incremental programming
- RS-232 serial interface port
- Backlash compensation
- Graphic Simulation
- Electronic hand wheel
- Run hour display
- LCD display
- Self diagnostick
- USB Port
STANDRD FEATURES
- Hardened & Ground EN-9 Box Guideways
- AC Spindle Drive & Servo Drive
- Hydraulic Chuck with Actuating cylinder
- Hydraulic Unit, Foot Switch, Coolant System
- Centralized Lubrication System
- Electrical Quality Device
- Boring holder & Axial holder
OPTIONAL
- Chip Converyor
- Bar feeder
- Bar Puller
- Hydraulic Turret
- Stabilizer
- Auto Door
WARM UP OPERATION
- Warm up Operation in the Machine must be do when machine power on after a certain time.
- In Warm up Operation of Machine move the all Axis without job in a Progarm Cycle.
Tool Interfernce Diagram
Working Range
STRUCTURE DIAGRAM
POWER DIAGRAM
| CAPACITY | UNIT | MT - 100 | TURRET - 200/300 | ||
| SWING OVER BED | MM | 275 | 500 | ||
| MAXIMUM TURNING LENGTH | MM | 200 | 300 | ||
| MAXIMUM DIA. BETWEEN CENTER | MM | - | 250 | ||
| DISTANCE BETWEEN CENTER | MM | - | 350 | ||
| STANDARD TURNING DIA. | MM | 100 | 200 | ||
| CHUCK SIZE | MM | 165 | 200 | ||
| MAX. TURNING DIA. | MM | 200 | 300 | ||
| X-AXIS TRAVEL | MM | 380 | 225 | ||
| Z-AXIS TRAVEL | MM | 225 | 350 | ||
| RAPID TRAVERSE | M/Min. | 24 | 24 | ||
| AXES | |||||
| X-Z AXIS LM | MM | 35 | 35 | ||
| Z AXIS BALL SCREW (P x D) | 32 x 10 | 32 x 10 | |||
| MOTOR TORQUE (Z axis) | NM | 7 | 7 | ||
| X AXIS BALL SCREW (P x D) | 32 x 10 | 32 x 10 | |||
| MOTOR TORQUE (X axis) | NM | 7 | 7 | ||
| MAIN SPINDLE | |||||
| SPINDLE MOTOR : SIEMENS | KW | 7.5 / 9 | 7.5 / 9 | ||
| FANUC | KW | 7.5 / 11 | 7.5 / 11 | ||
| SPINDLE BORE | 47 | 47 | |||
| SPINDLE NOSE | A2-5 | A2-5 | |||
| MAXIMUM BAR CAPACITY | 36 | 36 | |||
| SPINDLE SPEED RANGE | RPM | 50-3000 | 50-3000 | ||
| FULL POWER SPEED RANGE | RPM | 750-2250 | 750-2250 | ||
| TOOL | |||||
| NUMBER OF STATION | - | 12 VDI 30 | |||
| MAX. BORING BAR DIA. | 40 | 32 | |||
| TOOL SIZE (CROSS SECTION) | 25 x 25 | 20 x 20 | |||
| LIVE TOOL | as per Required | as per Required | |||
| OTHERS | |||||
| POSITIONING ACCURACY | MM | ±0.010 | ±0.010 | ||
| REPEATABILITY | MM | ±0.005 | ±0.005 | ||
| TOTAL POWER | KVA | 15 | 15 | ||
